WhatsApp RAG AI Bot using APIs

A WhatsApp bot that integrates with CustomGPT's API to provide intelligent responses from your agent's knowledge base.

More information on GitHub - https://github.com/Poll-The-People/customgpt-integrations

Get your CustomGPT.ai RAG API key here, needed to use this integration.

Features

• AI-Powered Responses: Uses CustomGPT's knowledge base
• Security: Rate limiting, user authentication, query validation
• Rich Interactions: Starter questions, inline buttons, media support
• Analytics: Usage tracking and statistics
• Multi-language Support: Configurable response language
• Performance: Response caching, session management
• Easy Deployment: Multiple free hosting options

Prerequisites

• Python 3.8+
• CustomGPT API credentials (API key and Agent ID)
• Twilio account with WhatsApp sandbox access

Quick Start (15 minutes)

1. Clone and Install

cd whatsapp
pip install -r requirements.txt

2. Configuration

Create a .env file:

# CustomGPT Configuration
CUSTOMGPT_API_KEY=your_api_key_here
CUSTOMGPT_PROJECT_ID=your_agent_id_here
CUSTOMGPT_API_URL=https://app.customgpt.ai

# Twilio Configuration
TWILIO_ACCOUNT_SID=your_account_sid_here
TWILIO_AUTH_TOKEN=your_auth_token_here
TWILIO_WHATSAPP_NUMBER=whatsapp:+14155238886

# Rate Limiting
RATE_LIMIT_DAILY=100
RATE_LIMIT_MINUTE=5
RATE_LIMIT_HOUR=30

# Security
ALLOWED_NUMBERS=+1234567890,+0987654321  # Optional: Whitelist specific numbers
BLOCKED_NUMBERS=+1111111111              # Optional: Block specific numbers
MAX_MESSAGE_LENGTH=500

# Redis (for production)
REDIS_URL=redis://localhost:6379         # Optional: For persistent rate limiting

# Features
ENABLE_VOICE_MESSAGES=true
ENABLE_MEDIA_RESPONSES=true
ENABLE_LOCATION_SHARING=false
DEFAULT_LANGUAGE=en

3. Set Up Twilio WhatsApp Sandbox

Get Twilio Credentials

1. Sign up at twilio.com (free trial with $15 credit)
2. Log in to Twilio Console
3. Go to "Account" → "API keys & tokens" OR click Phone Number section (choose "developer" when logging in)
4. Note your:
   • Account SID (starts with "AC")
   • Auth Token
   • WhatsApp number

Join WhatsApp Sandbox

1. In Twilio Console, go to "Messaging" → "Try it out" → "Send a WhatsApp message"
2. Follow instructions to join the sandbox
3. You'll send "join [your-keyword]" to the Twilio WhatsApp number
4. Note your sandbox number (e.g., whatsapp:+14155238886)

4. Run the Bot

Important: You need TWO terminal windows for local development:

Terminal 1 - Run the bot:

# Development mode
python bot.py

# OR Production mode with uvicorn
uvicorn bot:app --host 0.0.0.0 --port 8000

Terminal 2 - Run ngrok (for local testing):

# First time: Sign up at https://dashboard.ngrok.com and get your authtoken
ngrok config add-authtoken YOUR_AUTH_TOKEN

# Then expose your local server
ngrok http 8000

📌 Both must be running simultaneously for the bot to work!

5. Configure Twilio Webhook

1. Copy the HTTPS URL from ngrok (e.g., https://abc123.ngrok-free.app)
2. In Twilio Console, go to Messaging → Try it out → Send a WhatsApp message
3. In "Sandbox Configuration", set webhook URL to: https://YOUR-NGROK-URL.ngrok-free.app/webhook/whatsapp
4. Method: POST
5. Save the configuration
6. Test by sending a message!

⚠️ Note: ngrok URL changes each time you restart it. Update Twilio webhook accordingly.

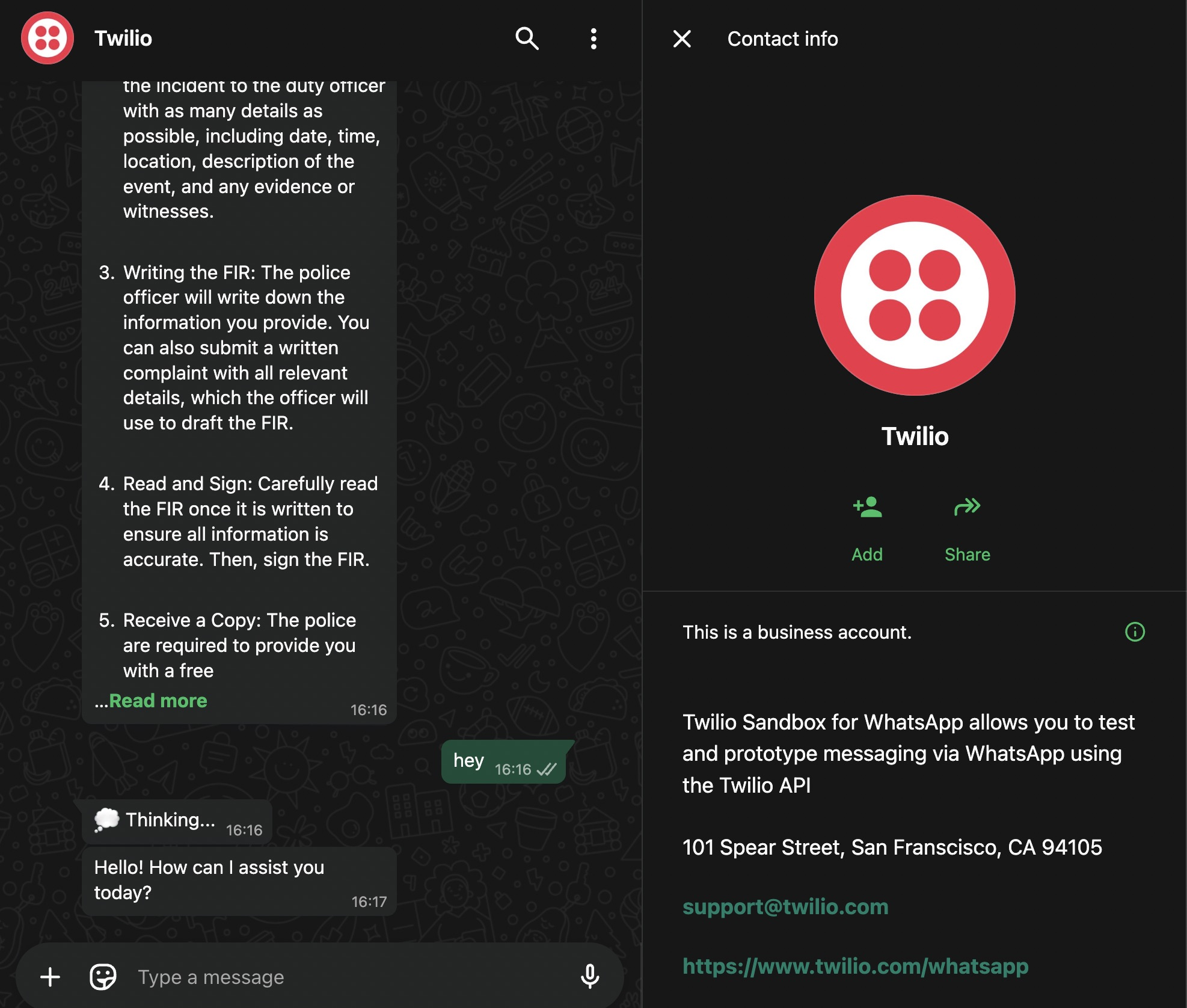

6. Test Your Bot

1. Send "Hi" to your Twilio WhatsApp number
2. You should receive a welcome message
3. Try asking questions related to your CustomGPT knowledge base

ngrok Setup Guide (Detailed)

Step 1: Create ngrok Account

1. Go to https://dashboard.ngrok.com/signup
2. Sign up for a free account (no credit card required)
3. Verify your email

Step 2: Get Your Auth Token

1. After signing in, go to: https://dashboard.ngrok.com/get-started/your-authtoken
2. Copy your authtoken (looks like: 2abc123XYZ...)

Step 3: Configure ngrok

ngrok config add-authtoken YOUR_AUTH_TOKEN_HERE

Step 4: Start ngrok

ngrok http 8000

You'll see output like:

Session Status                online
Account                       [email protected]
Forwarding                    https://abc123.ngrok-free.app -> http://localhost:8000

Troubleshooting ngrok

Bot not responding?

1. Check ngrok is still running
2. Check your bot is running (python bot.py)
3. Check Twilio webhook URL is correct
4. Look for errors in bot terminal

ngrok URL changed?

• ngrok free tier gives you a new URL each time
• When you restart ngrok: copy new URL → update in Twilio Console → save

Want a permanent URL?

• Upgrade to ngrok paid plan for custom domains
• Or use deployment options (Railway, Render, etc.)

WhatsApp Sandbox Limitations

You're currently using the FREE Twilio WhatsApp Sandbox, which has these limitations:

• Join Required: Users must first send "join [your-keyword]" to activate
• 24-Hour Window: You can only reply within 24 hours of receiving a message
• Shared Number: Messages come from Twilio's number, not your own
• Development Only: Not suitable for production use

After 24 hours of inactivity, you can only send pre-approved template messages (requires paid account).

Sandbox vs Production Comparison

Getting Your Own WhatsApp Business Number

To get your own WhatsApp Business number (Required for production):

1. Upgrade to paid Twilio account (trial accounts can't register WhatsApp senders)
2. Register your WhatsApp Business Profile
3. Get Facebook Business verification
4. Submit message templates for approval
5. Monthly fees apply + per-message costs

Learn more: Twilio WhatsApp API Docs

Deployment Options

Complete guide for deploying your CustomGPT WhatsApp bot to various free hosting providers.

Option 1: Railway (Recommended)

Free Tier: 500 hours/month, $5 credit

Steps:

1. Sign up at railway.app

2. Install Railway CLI (optional):

   Bash

   npm install -g @railway/cli

3. Deploy via GitHub:

   • Push your code to GitHub
   • Click "New Project" → "Deploy from GitHub repo"
   • Select your repository
   • Railway auto-detects Python

4. Configure Environment Variables:

   • Go to your project → Variables
   • Add all variables from .env:

     CUSTOMGPT_API_KEY=your_key
     CUSTOMGPT_PROJECT_ID=your_id
     TWILIO_ACCOUNT_SID=your_sid
     TWILIO_AUTH_TOKEN=your_token
     TWILIO_WHATSAPP_NUMBER=whatsapp:+14155238886
     RATE_LIMIT_DAILY=100
     # ... add all other variables

5. Get your URL:

   • Go to Settings → Domains
   • Your URL will be like: https://your-app.up.railway.app

6. Configure Twilio Webhook:

   • In Twilio Sandbox settings
   • Set webhook URL: https://your-app.up.railway.app/webhook/whatsapp
   • Method: POST
   • Save

CLI Deployment:

# Login
railway login

# Initialize project
railway init

# Link to existing project
railway link

# Deploy
railway up

# View logs
railway logs

Option 2: Render

Free Tier: 750 hours/month

Steps:

1. Sign up at render.com

2. Create New Web Service:

   • Click "New +" → "Web Service"
   • Connect GitHub repository
   • Select your repo

3. Configure Service:

   • Name: customgpt-whatsapp-bot
   • Environment: Python 3
   • Build Command: pip install -r requirements.txt
   • Start Command: python bot.py

4. Add Environment Variables:

   • Go to Environment tab
   • Add all variables from .env

5. Deploy:

   • Click "Create Web Service"
   • Wait for deployment
   • Note your URL: https://your-app.onrender.com

6. Configure Twilio:

   • Set webhook: https://your-app.onrender.com/webhook/whatsapp

Option 3: Fly.io

Free Tier: 3 shared-cpu-1x VMs

Steps:

1. Install Fly CLI:

   Bash

   curl -L https://fly.io/install.sh | sh

2. Sign up and login:

   Bash

   fly auth signup
   # or
   fly auth login

3. Launch app:

   Bash

   cd whatsapp
   fly launch

   • Choose app name
   • Select region (closest to you)
   • Don't deploy yet

4. Configure secrets:

   Bash

   fly secrets set CUSTOMGPT_API_KEY="your_key"
   fly secrets set CUSTOMGPT_PROJECT_ID="your_id"
   fly secrets set TWILIO_ACCOUNT_SID="your_sid"
   fly secrets set TWILIO_AUTH_TOKEN="your_token"
   fly secrets set TWILIO_WHATSAPP_NUMBER="whatsapp:+14155238886"
   # Set all other secrets

5. Deploy:

   Bash

   fly deploy

6. Get URL:

   Bash

   fly status
   # Your URL: https://your-app.fly.dev

7. Configure Twilio:

   • Set webhook: https://your-app.fly.dev/webhook/whatsapp

Option 4: Google Apps Script

Free Tier: Unlimited (with quotas)

Simplest option - no server needed!

Steps:

1. Go to script.google.com

2. Create new project

3. Copy code from google-apps-script/Code.gs

4. Set Script Properties:

   • Project Settings → Script Properties
   • Add all required properties

5. Deploy:

   • Deploy → New Deployment
   • Type: Web app
   • Execute as: Me
   • Access: Anyone

6. Get URL and configure in Twilio

⚠️ Warning: May timeout with complex queries (only "Thinking..." message sent)

See detailed instructions in google-apps-script/README.md

Other Free Alternatives

Koyeb

Free Tier: 2 services, 1 vCPU, 256MB RAM

# Install CLI
curl -fsSL https://cli.koyeb.com/install.sh | sh

# Deploy
koyeb app create customgpt-whatsapp
koyeb service create customgpt-whatsapp \
  --git github.com/yourusername/yourrepo \
  --git-branch main \
  --ports 8000:http \
  --routes /:8000

Cyclic.sh

Free Tier: 10,000 requests/month

1. Connect GitHub at cyclic.sh
2. Select repository
3. Add environment variables
4. Deploy

Deta Space

Free Tier: Always free, 10GB storage

# Install Space CLI
curl -fsSL https://get.deta.dev/space-cli.sh | sh

# Deploy
space new
space push

Deployment Comparison

*With quotas

Post-Deployment

1. Test Your Bot

1. Send "Hi" to your Twilio WhatsApp number
2. Check for welcome message
3. Test all commands

2. Monitor Logs

• Railway: railway logs
• Render: Dashboard → Logs
• Fly.io: fly logs
• Apps Script: View → Logs

3. Set Up Monitoring

1. Uptime monitoring:

   • Use uptimerobot.com (free)
   • Monitor: https://your-app.com/health

2. Error tracking:

   • Add Sentry (free tier)
   • Or use built-in logging

4. Configure Production WhatsApp

Once tested, apply for WhatsApp Business API:

1. Apply through Twilio
2. Get approved number
3. Update webhook URL

Bot Commands

• /start - Start conversation and show menu
• /help - Show available commands
• /examples - Show example questions
• /stats - View usage statistics
• /language [code] - Change response language
• /clear - Clear conversation history
• /feedback - Submit feedback

Implementation Options

Option 1: Twilio WhatsApp API (Currently Implemented) ✅

• Pros: Official API, reliable, quick setup, free sandbox
• Cons: Costs for production, requires Twilio account
• Best for: Rapid development, business use, production deployments

Option 2: Meta WhatsApp Business API (Direct)

• Pros: Direct integration, no middleman fees
• Cons: Complex setup, business verification required (2-4 weeks), hosting requirements
• Best for: Large enterprises with dedicated infrastructure

Why Not Use Meta's Direct API?

You absolutely can! But consider:

• Business Verification: Meta requires extensive business documentation
• Setup Complexity: Multiple steps across Meta Business, Facebook App, WhatsApp Manager
• Hosting Requirements: Need HTTPS webhooks, SSL certificates
• Approval Process: Can take 2-4 weeks for production access

Twilio Alternatives:

1. MessageBird - Similar to Twilio, good European option
2. Vonage (Nexmo) - Enterprise-focused
3. CM.com - Good for high-volume
4. 360dialog - Direct WhatsApp BSP
5. WATI - No-code option with UI

Option 3: Google Apps Script (Alternative Implementation)

• Pros: Free hosting, easy deployment, no server needed
• Cons: Limited features, requires Twilio, may timeout on long responses
• Best for: Simple bots, testing, short responses

Why Twilio and Redis?

Why Twilio for WhatsApp?

WhatsApp has strict policies about third-party integrations. There are only two official ways to create WhatsApp bots:

1. WhatsApp Business API (Direct)

   • Requires business verification (can take weeks)
   • Complex setup with Facebook Business Manager
   • Need to host your own webhook server
   • Monthly fees even for small usage
   • Best for: Large enterprises

2. WhatsApp Business API (via Providers like Twilio)

   • Quick setup (minutes, not weeks)
   • Free sandbox for testing
   • Twilio handles the complex Meta/WhatsApp integration
   • Pay-as-you-go pricing
   • Best for: Most businesses and developers

Why Redis?

Redis is OPTIONAL! The bot includes built-in memory storage that works perfectly for:

• Personal use
• Small teams (< 100 users)
• Single server deployments
• Testing and development

Redis is only beneficial when you need:

• Multiple bot instances (load balancing)
• Persistent rate limiting across restarts
• Shared session data between servers
• Very high user volumes (> 1000 users)

Running Without Redis

This is already implemented! Just run the bot without setting REDIS_URL:

# The bot automatically uses in-memory storage when Redis is not available
# No configuration needed - it just works!

Cost Comparison

Twilio Costs (Pay as you go)

• Sandbox: FREE (perfect for testing)
• Production: ~$0.005 per message
• Monthly: $0 (no minimum fees)

Direct Meta API Costs

• API Access: FREE
• But you need:
  • SSL certificate (~$10-100/year)
  • Server hosting (~$5-20/month)
  • Domain name (~$12/year)
  • Time for verification (2-4 weeks)

Redis Costs

• Development: FREE (built-in memory storage)
• Production Options:
  • Redis Cloud: FREE tier (30MB)
  • Self-hosted: FREE (on your server)
  • Only needed for high-scale deployments

Architecture & Development

Core Components

1. Bot Entry Point (bot.py)

   • FastAPI application handling Twilio webhooks at /webhook/whatsapp
   • Async message processing with process_message() function
   • Health check endpoint at /health

2. CustomGPT Integration (customgpt_client.py)

   • Async client for CustomGPT API
   • Session creation and message handling
   • Supports both streaming and regular responses
   • OpenAI format compatibility

3. Security Layer (security_manager.py)

   • Phone number whitelist/blocklist validation
   • Message content validation (SQL injection, XSS, command injection)
   • Rate limit multiplier for admin users
   • Profanity filtering (optional)

4. Rate Limiting (rate_limiter.py)

   • Redis-backed with in-memory fallback
   • Daily, hourly, and minute limits
   • Per-user tracking and statistics

5. Session Management (session_manager.py)

   • Conversation context storage
   • Language preferences
   • TTL-based session expiry

Development Commands

Local Development

# Install dependencies
pip install -r requirements.txt

# Run locally (development mode)
python bot.py

# Run with uvicorn (production mode)
uvicorn bot:app --host 0.0.0.0 --port 8000 --reload

Testing

# Run all tests
pytest

# Run with coverage
pytest --cov=. --cov-report=html

# Run specific test file
pytest test_bot.py -v

Code Quality

# Format code
black .

# Sort imports
isort .

# Lint code
flake8 .

# Type checking
mypy .

Docker

# Build image
docker build -t customgpt-whatsapp-bot .

# Run container
docker run -p 8000:8000 --env-file .env customgpt-whatsapp-bot

Twilio Webhook Flow

1. Twilio sends POST request to /webhook/whatsapp with form data
2. Bot extracts message details from form data (From, Body, MessageSid)
3. Returns immediate TwiML response to acknowledge receipt
4. Processes message asynchronously to avoid timeout

CustomGPT API Integration

• Uses session-based conversations (session_id required)
• Conversation creation requires a "name" field
• Messages API endpoint: /api/v1/projects/{project_id}/conversations/{session_id}/messages
• Supports streaming responses (not currently used in WhatsApp implementation)

Security Features

1. Rate Limiting

   • Per-user daily/hourly/minute limits
   • Automatic reset at midnight
   • Customizable limits per user tier

2. Message Validation

   • Maximum message length enforcement
   • Spam detection
   • SQL injection prevention
   • Profanity filtering (optional)

3. User Authentication

   • Phone number whitelist/blacklist
   • Admin commands protection
   • Session management

4. Data Protection

   • No message logging by default
   • Encrypted session storage
   • GDPR compliance ready

Advanced Features

Starter Questions

The bot automatically suggests relevant questions based on:

• Your CustomGPT agent's knowledge base
• User's previous queries
• Popular questions

Rich Media Support

• Send and receive images
• Voice message transcription
• Document handling
• Location-based queries

Multi-turn Conversations

• Context retention across messages
• Session management
• Conversation history

Analytics Dashboard

• User engagement metrics
• Popular queries
• Response times
• Error tracking

Troubleshooting

Common Issues

1. Webhook not receiving messages

   • Verify webhook URL in Twilio console
   • Check ngrok tunnel if testing locally
   • Ensure bot is running and accessible

2. Authentication Error - Invalid Username

   • Your Account SID should start with "AC" (not "US" or other prefixes)
   • Verify credentials in Twilio Console
   • Test with curl command below

3. Rate limit errors

   • Check Redis connection (optional)
   • Verify rate limit settings
   • Admin numbers get 10x higher limits

4. CustomGPT API errors

   • Verify API credentials
   • Check agent ID
   • Ensure agent is active

Testing Twilio Credentials

Test your Twilio setup with this curl command:

curl 'https://api.twilio.com/2010-04-01/Accounts/YOUR_ACCOUNT_SID/Messages.json' -X POST \
--data-urlencode 'To=whatsapp:+1234567890' \
--data-urlencode 'From=whatsapp:+14155238886' \
--data-urlencode 'Body=Your appointment is coming up on July 21 at 3PM' \
-u YOUR_ACCOUNT_SID:YOUR_AUTH_TOKEN

Replace:

• YOUR_ACCOUNT_SID: Your Twilio Account SID (starts with AC)
• YOUR_AUTH_TOKEN: Your Twilio Auth Token
• +1234567890: Your WhatsApp number (recipient)
• +14155238886: Your Twilio sandbox number (or your WhatsApp Business number)

Example Response (201 - CREATED):

{
  "account_sid": "ACxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx",
  "api_version": "2010-04-01",
  "body": "Your appointment is coming up on July 21 at 3PM",
  "status": "queued",
  "to": "whatsapp:+917978307903",
  "from": "whatsapp:+14155238886"
}

Status Codes:

• 201 Created: Message successfully queued for delivery
• 400 Bad Request: Invalid parameters (check phone number format)
• 401 Unauthorized: Invalid credentials
• 429 Too Many Requests: Rate limit exceeded

Debugging Tips

1. Check logs: The bot logs all incoming messages
2. Test health endpoint: curl http://localhost:8000/health
3. Verify webhook: Messages should appear in terminal
4. Check Twilio Console: Look for webhook logs and errors

Debugging Webhook Issues

# Test webhook locally
curl -X POST http://localhost:8000/webhook/whatsapp \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -d "From=whatsapp:+1234567890&Body=test&MessageSid=123"

Bot Not Responding

1. Check webhook URL:

   Bash

   curl -X POST https://your-app.com/webhook/whatsapp \
     -H "Content-Type: application/x-www-form-urlencoded" \
     -d "From=whatsapp:+1234567890&Body=test"

2. Check logs for errors

3. Verify environment variables are set

4. Test Twilio connection:

   Python

   # Test script
   from twilio.rest import Client
   client = Client(account_sid, auth_token)
   message = client.messages.create(
     to='whatsapp:+1234567890',
     from_='whatsapp:+14155238886',
     body='Test message'
   )

Rate Limiting Issues

1. Increase limits in environment variables
2. Implement Redis for production
3. Monitor usage with /stats command

Memory Issues

1. Add Redis for session/rate limit storage
2. Optimize code:
   • Remove unused imports
   • Use connection pooling
   • Implement caching

SSL/Security Issues

1. All platforms provide free SSL
2. Never expose sensitive credentials
3. Use environment variables only

Scaling Considerations

When you outgrow free tiers:

1. Upgrade hosting:

   • Railway: Pay as you go
   • Render: $7/month starter
   • Fly.io: Pay for additional resources

2. Add Redis:

   • Redis Cloud free tier (30MB)
   • Or upgrade to paid Redis

3. Implement queuing:

   • For high message volume
   • Use Redis + background workers

4. Multiple instances:

   • Load balance across instances
   • Share Redis for state

Security Best Practices

1. Environment Variables:

   • Never commit .env file
   • Use platform secret management

2. Webhook Security:

   • Validate Twilio signatures
   • Implement request validation

3. Rate Limiting:

   • Always enabled
   • Monitor for abuse

4. Access Control:

   • Implement phone number whitelist
   • Admin commands protection

Quick Setup Checklist

Before troubleshooting, ensure:

• Bot is running (python bot.py) - Terminal 1
• ngrok is running (ngrok http 8000) - Terminal 2
• Webhook URL is updated in Twilio Console
• You've joined the sandbox (sent "join [keyword]")
• Your phone number is in ALLOWED_NUMBERS in .env

Resources

CustomGPT Links

• CustomGPT Landing Page
• Live Demo
• CustomGPT Starter Kit
• CustomGPT Integrations
• API Documentation
• Postman Collection
• MCP Documentation
• Office Hours
• YouTube Channel

Platform Documentation

• Twilio WhatsApp API Documentation: twilio.com/docs/whatsapp/api

Contributing

Feel free to submit issues and enhancement requests!

License

MIT
